Omnigrad M TW251
Protection tube for temperature sensors

Omnigrad M TW251
Protection tube for temperature sensors ©Endress+Hauser

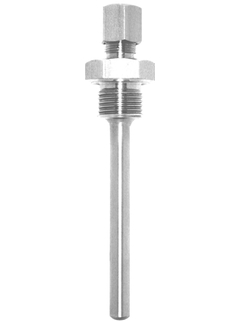

The protection tube with built-in compression fitting allows varying types of probes to be applied

This protection tube is well fitted with an integrated compression fitting, suitable for different industrial applications including even hygienic applications. By default, it is fitted onto pipes and vessels or tanks where attachment to the process can be threaded or welded. Due to its construction various types of temperature probes, such as compact thermometers as well as assemblies without a protection tube or cable probes, generally with an probe diameter of 6 mm, can be applied.

  • 利点

    • The compression fitting allows for the replacement of the faulty probes without having to suspend the process underway

    • Different process connections can be selected as standard within the sales structure: Threaded (G ½", G ¼", NPT ½", ...); Weld-in (...

  • アプリケーション

    TW251 is a tube well fitted with an integrated compression fitting, suitable for different industrial applications including hygienic applications.

機能と仕様

戻る

Details

  • 測定原理

    組立形(パイプ封じ径)サーモウェル

  • 特性 / アプリケーション

    6 mm (0.24")径および9 mm (0.35")径プローブ用

  • 接続部ヘッド

    コンプレッションフィッティング

  • 最大標準浸漬長

    4,000 mm (157.48")

  • 最大浸漬長 要問合わせ

    10,000 mm (393.7")

  • プロセス接続

    溶接:

    -ネジ:

    G1/2"

    1/2" NPT

  • 谷径

    6 mm (0.24")

    9 mm (0.35")

  • 様々な測定物に対応した材質

    1.4404 (SUS316L相当)

  • 接液部仕上げ(Ra)

    < 0.4 μm (15.75 μin)

    < 0.8 μm (31.50 μin)

    < 1.2 μm (47.25 μin)

  • 先端チップ部の形状

    ストレート

    切詰

    テーパー

  • 温度レンジ

    -200...650 °C (-328...1,202 °F)

  • 最大プロセス圧力 (静的)

    5 MPa (725 psi)

  • 最大プロセス圧力 (400℃の時)

    プロセス接続に依存
