仕様一覧
-
精度
クラス 1(IEC 60584基準)
クラス 2(IEC 60584基準) -
応答時間
63% rt = 1.3 秒
-
最大プロセス圧力 (静的)
20 °Cの時: 10 MPa (1,450 psi)
-
測定温度レンジ
タイプ T:
-270~400°C
(-454~752°F)
タイプ J:
-210~ 1,200°C
(-346~2,192°F)
タイプ E:
-270~ 1,000°C
(-454~1,832°F)
タイプ K:
-270~1,372°C
(-454~2,500°F)
タイプ N:
-270~ 1,300°C
(-454~2,372°F) -
最大浸漬長 要問合わせ
最大30"(762 mm)
その他の長さについては要問合せ
アプリケーション
The high modular thermometer is used for several applications with harsh environments, e.g. in power plants, refineries or in the chemical or petrochemical industry. The robust device is designed for use within an existing thermowell. With different head transmitter it's a complete unit ready for use with enhanced measurement accuracy and reliability.

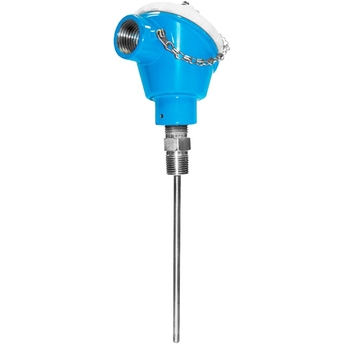

The TH55 temperature sensors are thermocouple assemblies, designed for use in all types of process industries, including heavy industries, due to their rugged design. They are made up of a magnesium oxide insulated thermocouple as a measurement probe and a thermowell made of barstock material.
The sensor assemblies can be used in process industries such as:
Chemicals
Petrochemicals
Power plants
Refineries
Offshore platforms
利点
One source shopping for temperature measurement solutions. World class transmitter with integrated sensor offering for heavy process industry applications.
Remove and install straight out of the box!
Improved galvanic isolation on most devices (2 kV).
Simplified model structure: Competitively priced, offers great value. Easy to order and reorder. A single model number includes sensor, thermowell and transmitter assembly for a complete point solution.
All iTEMP® transmitters provide long term stability ≤ 0.05% per year

FLEX セレクション | 技術的卓越性 | シンプルさ |
---|---|---|
Fundamental セレクション 基本的な測定要件に対応 |
技術的卓越性
|
シンプルさ
|
Lean セレクション コアプロセスの要件に対応 |
技術的卓越性
|
シンプルさ
|
Extended セレクション 革新的な技術でプロセスを最適化 |
技術的卓越性
|
シンプルさ
|
Xpert セレクション 最も困難なアプリケーションにも対応 |
技術的卓越性
|
シンプルさ
高い柔軟性 |
成功事例
-
測定原理
T用熱電対
-
特性 / アプリケーション
TA20J - SS - ディスプレイあり/なし
TMT142 - アルミニウム - フィールドハウジング:ディスプレイあり/なし
TMT162 - アルミニウム - フィールドハウジング:ディスプレイあり/なし
TMT162 - SS - フィールドハウジング:ディスプレイあり/なし
アルミニウム - ネジ付きカバー(チェーン付き)- E+Hブルー
PPプラスチック - ネジ付きカバー(チェーン付き)
TA30H - アルミニウム:ディスプレイあり/なし -
サーモウェル / 保護管
要サーモウェル
-
インサート / プローブ
無機絶縁 (MI)、形状変更可
-
保護管/インサート外径
1/4'' (6.35 mm)
-
最大浸漬長 要問合わせ
最大30"(762 mm)
その他の長さについては要問合せ -
保護管/サーモウェルの材質
センサ(シース型)
SUS 316相当
アロイ600 -
コーティング(オプション)
該当なし
-
プロセス接続
サーモウェル接続
雄ネジ:
NPT1/2" -
先端チップ部の形状
ストレート
-
表面粗さ Ra
定義されていません
-
測定温度レンジ
タイプ T:
-270~400°C
(-454~752°F)
タイプ J:
-210~ 1,200°C
(-346~2,192°F)
タイプ E:
-270~ 1,000°C
(-454~1,832°F)
タイプ K:
-270~1,372°C
(-454~2,500°F)
タイプ N:
-270~ 1,300°C
(-454~2,372°F) -
最大プロセス圧力 (静的)
20 °Cの時: 10 MPa (1,450 psi)
-
精度
クラス 1(IEC 60584基準)
クラス 2(IEC 60584基準) -
応答時間
63% rt = 1.3 秒
-
組込型伝送器
あり(4~20 mA;HART;PROFIBUS PA;FOUNDATIONフィールドバス)
-
防爆認定
伝送器のみ
FM IS
CSA IS
FM/CSA IS -
認証
SIL (伝送器のみ)
-
-
簡易取扱説明書(KA)
TH55 Compact Instructions
-
簡易取扱説明書(KA)
英語版 - 02/2013Thermocouple assembly
EN JA 04/02/201305/07/200708/07/200501/07/2005言語:
英語
バージョン:
04/02/2013
ファイルサイズ:
522.1 KB
ファイル名:
KA00198ren_1312.pdf
-
-
-
証明書 FM/CSA(ZD)
Control Drawing CSA Intrinsically Safety, Nonincendive THxx, Txx Series, TU111, TU121, TU211, TU221
-
証明書 FM/CSA(ZD)
英語版 - 11/2006Installation Notes for Hazardous Locations
言語:
英語
バージョン:
02/11/2006
ファイルサイズ:
72.5 KB
ファイル名:
160100112.pdf
-
-
-
個別説明書(SD)
Device viewer
-
個別説明書(SD)
英語版 - 07/2021Technical documentation in other languages
言語:
英語
バージョン:
14/07/2021
ファイルサイズ:
478.5 KB
ファイル名:
SD02429R09EN_0121.pdf
-
-
-
適用分野(FA)
Temperaturmesstechnik
-
適用分野(FA)
ドイツ語版 - 02/2025Thermometer und Transmitter für die Prozessindustrie
言語:
ドイツ語
バージョン:
04/02/2025
ファイルサイズ:
18.9 MB
ファイル名:
FA00006Tde.pdf
-
-
-
適用分野(FA)
Temperature measurement
-
適用分野(FA)
英語版 - 02/2025Thermometers and transmitters for the process industry
言語:
英語
バージョン:
04/02/2025
ファイルサイズ:
19.1 MB
ファイル名:
FA00006Ten_2325_interaktiv_verb.pdf
-
-
-
適用分野(FA)
Misura della temperatura
-
適用分野(FA)
イタリア語版 - 07/2024Misura della temperatura
Termometri e trasmettitori per l'industria di processo言語:
イタリア語
バージョン:
09/07/2024
ファイルサイズ:
20.3 MB
ファイル名:
FA00006Tit_2223.pdf
-
-
-
適用分野(FA)
Misura della temperatura
-
適用分野(FA)
イタリア語版 - 02/2020Termometri e trasmettitori per l'industria di processo
言語:
イタリア語
バージョン:
17/02/2020
ファイルサイズ:
30.6 MB
ファイル名:
FA00006TIT_2020.pdf
-
-
-
適用分野(FA)
Catálogo medición temperatura
-
適用分野(FA)
スペイン語版 - 04/2018Termómetros y transmisores para la industria de proceso
言語:
スペイン語
バージョン:
20/04/2018
ファイルサイズ:
5.5 MB
ファイル名:
FA00006Tes_Catalogo Temperatura_1818.pdf
-
-
-
適用分野(FA)
温度計
-
適用分野(FA)
日本語版 - 02/2020プロセス産業向けの温度計
および伝送器言語:
日本語
バージョン:
17/02/2020
ファイルサイズ:
38.9 MB
ファイル名:
FA00006TJA_2020.pdf
-
