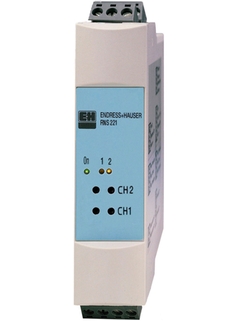

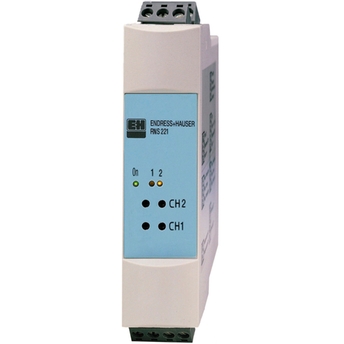

Transmitter supply for DIN rail
Power supply for two 2 wire sensors or transmitters
The power supply has two galvanically isolated outputs for supplying voltage to sensors and transmitters. A built-in communication resistance enables bidirectional HART® communication with SMART sensors and transmitters.
Galvanic isolation between all circuits
Sockets and built in 250 Ohm resistor for HART® communication
Wide-range power supply 20 to 250 V AC/DC, 50/60 Hz
Top hat DIN rail mounted housing to IEC 60715
The unit supplies two 2 wire sensors or transmitters galvanically isolated. This is only valid for non-Ex areas.
Using the HART® communication sockets bi-directional communication to SMART transmitters, (for setting up etc.).
アクセサリ / スペアパーツ
旧機種 / 後継機種
従来機: NX9120, NX9121
