Cleaning unit

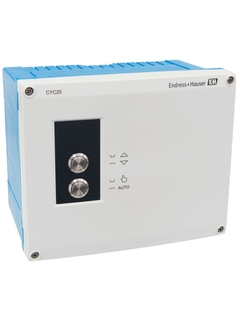

Cleanfit Control CYC25

Automated sensor cleaning in combination with Liquiline CM44 and Chemoclean Plus ©Endress+Hauser

Unit for retractable assemblies in water & wastewater, food, paper and primaries

Only a clean sensor delivers reliable measured values. Cleanfit Control CYC25 in combination with Liquiline CM44 and Chemoclean Plus enables automated, regular cleaning of sensors. It thus guarantees highly accurate measured values for more process safety. Cleanfit Control also reduces process downtime and minimizes maintenance effort since there is no need to remove the sensor for cleaning.

  • 利点

    • Very high degree of safety: In-process cleaning, no electrode removal necessary

    • Automatic cleaning on detection of electrode fouling results in highly accurate, reliable measured values

    • High availability: Long electrode life due to regular cleaning

    • Low...

  • アプリケーション

    Cleanfit Control allows automatic cleaning of sensors installed in retractable assemblies. This means that sensor performance can be maintained at a high level without any interruption to the process. Cleanfit Control is excellently suited to the...

機能と仕様

戻る

Details

  • 測定原理

    ガラス電極

  • アプリケーション

    廃水、プロセス、製薬、食品、紙、鉱業

  • 取付

    完全自動洗浄システム

  • 特性

    完全自動化洗浄システム。週単位でプログラム可能な洗浄および複数の保護機能付き。

  • 構造

    Liquiline CM44xとの併用で完全自動洗浄システム

  • 材質

    Bottom part of housing: PC-FR
    Cover: PC-FR
    Housing seal: EPDM

  • 外形寸法

    237 x 194 x 162 mm (l x h x w)
    9.33 x 7.64 x 6.38 inch (l x h x w)

  • プロセス温度

    Ambient temperature range: -10 to 45 °C (10 to 113 °F)

  • 入力

    ワンチャンネルシステム
