アナログ ORP センサ

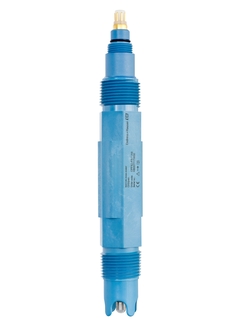

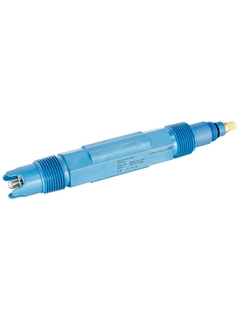

オービパック CPF82
排水処理、鉱工業向けコンパクト電極
オービパック CPF82は、厳しいプロセス環境においてアナログORP測定を提供します。高流量の繊維質を含む媒体でも正確で信頼性の高い測定を実現。配管や浸漬パイプに直接取付可能なため、設置スペースおよび取付時間を節減可能。
FLEX セレクション | 技術的卓越性 | シンプルさ |
---|---|---|
Fundamental セレクション 基本的な測定要件に対応 |
技術的卓越性
|
シンプルさ
|
Lean セレクション コアプロセスの要件に対応 |
技術的卓越性
|
シンプルさ
|
Extended セレクション 革新的な技術でプロセスを最適化 |
技術的卓越性
|
シンプルさ
|
Xpert セレクション 最も困難なアプリケーションにも対応 |
技術的卓越性
|
シンプルさ
高い柔軟性 |
-
仕様一覧
-
測定範囲
-1500mV - -1500mV
-
プロセス温度
-10°C ... 110°C
(14°F - 230°F) -
プロセス圧力
最大 1 MPa
(145 psi)
-
クイック選択
個別のコンフギュレータ
-
利点
配管および浸漬パイプへの直接取付可能
特許取得の KNO3 KNO3 のダブルジャンクション構造により、硫化物イオン( S2- )や シアン化物イオン(CN-)の汚染に対し飛躍的に耐性が向上
衝撃に強い保護カバー付き
-
アプリケーション
Orbipac CPF82 は、排水処理および鉱工業向けの堅牢な ORP センサです。
下記モニタリングに最適です。流出入口
中和処理
浮遊選鉱
浸出
