Flow assembly for chlorine dioxide sensors Flowfit CCA151

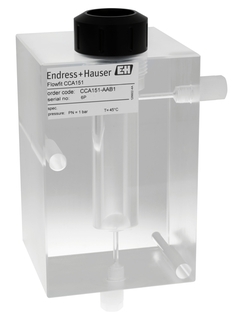

Flowfit CCA151: Flow assembly for chlorine dioxide sensors ©Endress+Hauser
Flowfit CCA151 flow assembly with Memosens CCS50D chlorine dioxide sensor installed ©Endress+Hauser

Simple assembly for drinking and process water applications

Flowfit CCA151 is a simple flow assembly for disinfection parameters such as chlorine dioxide that do not require pH compensation. Sensors installed in the acrylic glass assembly need only a sample flow as low as 5 l/h (1.32 gph) for accurate measurement. This enables precise control of disinfection processes with minimal water loss. Thanks to flexible mounting options for panels, walls and pipes, Flowfit CCA151 places the disinfection sensor at an optimal position for best measuring results.

  • 利点

    • Minimum water loss: When installed in Flowfit CCA151, sensors require a sample flow as low as 5 l/h (1.32 gph) for precise chlorine dioxide measurement. Only a very small volume of water goes to waste.

    • Reliable measurement: Flexible mounting options...

  • アプリケーション

    CCA151 is a flow assembly for the measurement of disinfection parameters without pH compensation, e.g. chlorine dioxide in:

    • Drinking water

    • Utilities of all industries

    • Applications with low sample volumes

機能と仕様

戻る

Details

  • 測定原理

    遊離塩素

  • アプリケーション

    飲用水
    あらゆる産業のユーティリティ
    低サンプル流量用

  • 特性

    塩素センサ用流通ホルダ

  • 構造

    隔膜への直接流入式の流通ホルダ

  • 材質

    プレキシグラス(PMMA)

  • 外形寸法

    85 mm x 85 mm x 220 mm(3.35 in x 3.35 in x 8.64 in)

  • プロセス温度

    最大 60 °C(140 °F)

  • プロセス圧力

    最大 400 kPa(58 psi)相対圧
