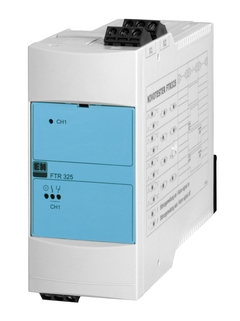

Nivotester FTR325

Nivotester FTR325 ©Endress+Hauser

For the Soliwave FQR50/FDR50 microwave barrier

The Nivotester FTR325 is a 1-channel switch amplifier and suitable for the Soliwave FQR50/FDR50 microwave barrier. Used for point level detection for any type of solids or for control and counting tasks for packaged goods.


  • 利点

    • High level of operational safety through line monitoring up to the sensor

    • Easy installation due to compact housing for easy inline mounting on standard rack rails and wiring via pluggable terminal block connectors

    • Selectable pick-up and/or drop-out...

  • アプリケーション

    Typical bulk solids are: wood chips, wood dust or flour, plaster, cement, ash, paper or cardboard shred, gravel, sand, dried powders in general, bags and boxes.

    • Ambient temperature: -20 to +60°C (-4 to +140°F)

    • Mounting: Standard rack rails

    • International...


  • 測定原理


  • 特性 / アプリケーション

    設計: トップハットレール

  • 周囲温度

    -20 °C ... 60 °C
    (-4°F ... 140 °F)

  • 通信


  • 規格適合証明書/認証

    ATEX, IEC Ex

  • コンポーネント

    エミッタ: FQR50
    レシーバ: FDR50

  • 後継機種

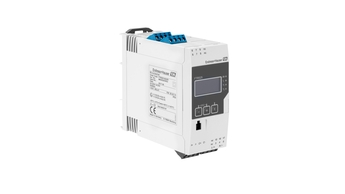

    Nivotester FTR525


アクセサリ / スペアパーツ

Order code
  • 後継機種
