静圧式
レベル計
Deltapilot FMB70
静圧式レベル測定用のCONTITE測定セルを搭載した高性能の圧力センサ

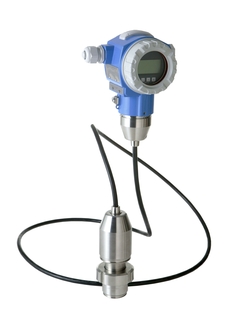

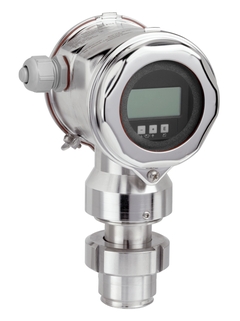

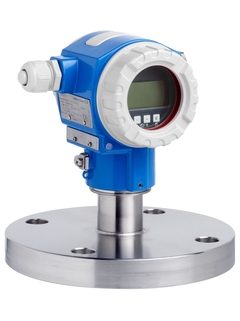

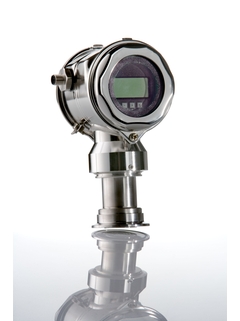

結露に強いCONTITEセルを搭載し、電源と電子回路部が分離した2室構造のハウジングを採用したDeltapilot FMB70は、食品・製薬などのサニタリ性の要求される産業のプロセスに最適です。開放型または密閉型のタンクの液体およびペースト状測定物のレベル測定に用いられ、泡形成の影響を受けません。内蔵のHistoROM®/M-DATメモリモジュールにより、プロセスデータ管理および機器のパラメータ設定が容易になります。IEC 61508準拠のSIL3安全システムに対応します。
- F
- L
- E
- X
FLEX セレクション | 技術的卓越性 | シンプルさ |
---|---|---|
Fundamental セレクション 基本的な測定要件に対応 |
技術的卓越性
|
シンプルさ
|
Lean セレクション コアプロセスの要件に対応 |
技術的卓越性
|
シンプルさ
|
Extended セレクション 革新的な技術でプロセスを最適化 |
技術的卓越性
|
シンプルさ
|
Xpert セレクション 最も困難なアプリケーションにも対応 |
技術的卓越性
|
シンプルさ
高い柔軟性 |
-
仕様一覧
-
精度
標準 0.1%
オプション 0.075% -
プロセス温度
-10°C...100°C
(14°F...212°F) -
プロセス圧力 (絶対圧力) / 最大過圧リミット
4 MPa (600 psi)
-
圧力測定範囲
10 kPa...1 MPa
(1.5psi...150psi) -
主要接液部
アロイ C
SUS316L相当 -
最大測定距離
100m H2O
-
プロセスメンブレンの材質
SUS316L相当、アロイC、
ゴールド-ラジウム -
計測セル
10 kPa...1 MPa
(1.5psi...150psi)
-
クイック選択
個別のコンフギュレータ
-
利点
結露に強い密封型CONTITE測定セルを搭載、高いリファレンス精度:±0.1%、オプション±0.075%、温度補償機能により温度影響は最小限
非常に高いバッチ間の再現性と長期安定性
ディスプレイまたは電子モジュールの交換が簡単なモジュールコンセプト
HistoROM®/M-DATメモリモジュールによる機器設定および測定値のデータバックアップ
センサから本体電子部までの機能を監視
シームレスかつ独立したシステム統合(HART/PA/FF)
幅広い認証を取得済のため様々な国で使用可能
-
アプリケーション
レベルおよび/または圧力測定用
プロセス接続:ネジ込み、フランジ、サニタリ接続
プロセス温度:–10~+100 ℃(14~212 °F)、(最大30分間まで+135 ℃(275 °F))
測定範囲:10 kPa~1MPa ゲージ圧(1.5~150 psi)
精度:±0.075%
国際防爆認証、オーバーフロー防止(WHG)、SIL、サニタリ認定、船級認定
