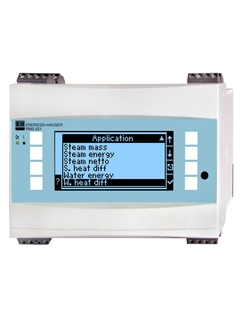

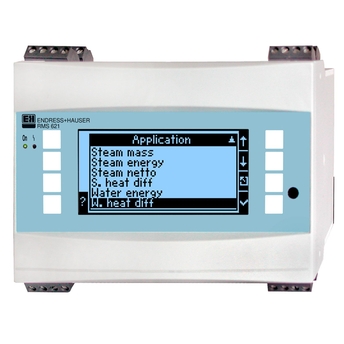

Steam- and heat computer RMS621

Measuring principle

Energy manager
Measuring principle

Energymanager
Function

Steam and water balancing for industrial energy management
Calculations

heat quantity
heat quantity difference
Number of applications

3
Data storage

no
Calculation standards

IAPWS-97
Communication

1 x RS232
2 x RS485
PROFIBUS DP
M-Bus
Modbus RTU
Power supply

Not defined
Loop power supply

90...250V AC 50/60 Hz
20...28V AC 50/60 Hz
20...36V DC
Protection class

IP20
Input

2...6x RTD
2...8x I
2...8x PFM
2...8x Impulse (aktive)
2...8x Impulse (passive)
Output

3...9x transmitter power supply
Dimensions (WxHxD)

135 x 108 x 114 mm (5.32" x 4.25" x 4.49")
Operation

Soft keys RS232 and operation software ReadWin 2000
Display

Dot-Matrix LCD, backlit, colour change in case of alarm event
Software functions

International calculation standards for steam and water
Certificates

EAC

Filter

Search spare parts by number in drawing

- Show drawing (PDF)

60 spare parts & accessories

Front cover for version without display

Housing/housing accessories

Drawing number

Order code

1

RMS621X-HA
Front cover for version with display

Housing/housing accessories

Drawing number

Order code

1

RMS621X-HB
Housing cpl. without front, incl. 3x dummy inserts

Housing/housing accessories

Drawing number

Order code

2

RMS621X-HC
Bus board

Electronic

Drawing number

Order code

3

RMS621X-BA
Power supply 90-253VAC

Electronic

Drawing number

Order code

4

RMS621X-NA
Power supply 18-36VDC/20-28VAC

Electronic

Drawing number

Order code

4

RMS621X-NB
Display for units with software FSU00xA

Display

Drawing number

Order code

5

RMS621X-DA
Front board, vers. w/o display, FSU00xA for units with software FSU00xA

Display

Drawing number

Order code

5

RMS621X-DB
Display + front cover, software FSU00xA for units with software FSU00xA

Display

Drawing number

Order code

5

RMS621X-DC
Display for units with software FCSx0xA

Display

Drawing number

Order code

5

RMS621X-DE
Front board, version w/o display for units with software FCSx0xA

Display

Drawing number

Order code

5

RMS621X-DF
Display + front cover for units with software FCSx0xA

Display

Drawing number

Order code

5

RMS621X-DG
Extension board temperature (Pt100/Pt500/Pt1000)cpl.incl. connector + fixing frame

Electronic

Drawing number

Order code

6

RMS621A-TA
Extension board universal (PFM/pulse/analogue/loop power) cpl. incl.connector + fixing frame

Electronic

Drawing number

Order code

7

RMS621A-UA
Supply terminal 4 pole

Terminals

Drawing number

Order code

8

51000780
Terminal plug-in 4pol.SMSTB2,5 91/92/53/

Terminals

Drawing number

Order code

9

51004062
Terminal plug-in 4pol.SMSTB2,5 82/81/10/

Terminals

Drawing number

Order code

10

51004063
Terminal plug-in 4pol.SMSTB2,5 83/81/110

Terminals

Drawing number

Order code

11

51004064
Terminal plug-in 4pol.SMSTB2,5 104..101

Terminals

Drawing number

Order code

14

51004065
Terminal plug-in 4pol.SMSTB2,5 134..131

further parts

Drawing number

Order code

15/17

51004066
Terminal plug-in 4pol.SMSTB2,5 1/5/6/2

Terminals

Drawing number

Order code

12

51004067
Terminal plug-in 4pol.SMSTB2,5 3/7/8/4

Terminals

Drawing number

Order code

13

51004068
Terminal RMx621/FML621, Input 1, RTD

Terminals

Drawing number

Order code

19

51004907
Terminal RMx/FML621, Input 2, RTD

Terminals

Drawing number

Order code

20

51004908
Terminal RMx/FML621, Input 2, 4-20mA

Terminals

Drawing number

Order code

22

51004909
Terminal RMx/FML621, Input 1, 4-20mA

Terminals

Drawing number

Order code

21

51004910
Terminal RMx/FML621 dig./open collecto

Terminals

Drawing number

Order code

18

51004911
Terminal plug-in RMx/FML621 relay

Terminals

Drawing number

Order code

16

51004912
CPU Board RMS621

Electronic

Drawing number

Order code

23

RMS621C-
PROFINET device for DIN rail

further parts

Order code

RMS621A-P2
Display-/operat. keys: in offset housing for panel mounting 144x72mm. For units with software FCSx0xA. By using display on unit and display in offset simultaneous only usable together with the "new" unit display (FW: >=3.02.03)

Order code

RMS621A-AA
Display-/operat. keys: in offset FSU00xA housing for panel mounting 144x72mm. For units with software FSU00xA. By using display on unit + display in offset simultaneous only usable together with "old" unit display (FW: < 3.02.03)

Order code

RMS621A-AB
PROFIBUS DP slave module from software >=V2.01.00 for DIN rail

Order code

RMS621A-P1
Set, 10x fixing lever housing

Order code

71402350
Housing Field, R4 182x180x165, 5xM20, PC

Order code

52010132
Accessories RXU10

Order code

RXU10-
Service

Order code

DIENST-
