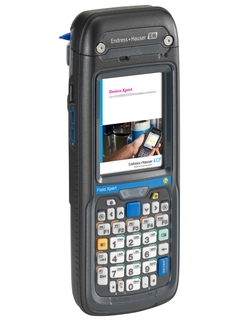

Field Xpert SFX370

Ruggedized mobile computer (PDA) for commissioning and maintenance of field devices. Efficient device configuration and device diagnostics for HART and FOUNDATION fieldbus devices in Ex- and Non Ex-areas.

OMAP Multi Core Processor 1GHz

512 MB RAM, 1 GB Flash Memory,
16 GB Micro-SD Card (up to 32 GB possible)

Lithium-ion battery, IEEE 1725 (removable, rechargeable), 3,7 V,4000 mAh

Standard:
225 mm x 85 mm x 58 mm
(8,8" x 3,3" x 2,3")
With optional head module:
249 mm x 85 mm x 58 mm
(9,8" x 3,3" x 2,3")

High resolution 3.5 inches touchscreen display, Gorilla glass protected, ambient light sensor, LED backlight, automatic screen rotation (accelerometer).

VGA (640 x 480 pixels), 65.536 colors

• USB
• Wireless LAN
• Bluetooth
• Infrared

Operating system:
Microsoft Windows Embedded Handheld 6.5.3,
German or English (depending on the order)

Configuration software:
• Device Xpert HART
• Device Xpert FOUNDATION fieldbus

• Wireless WAN
• GPS

Drop specification:
MIL-STD 810G
Electromagnetic Compatibility:
Interference conformance to
• EN 55022: 2006 + A1: 2007
• CISPR 22: 2006-03 (Class B)
Immunity conformance to
• EN 55024: 1998 + A1: 2001 + A2: 2003
• CISPR 24: 1998 + A1: 2001 + A2: 2003
Ingress protection:
IP65, NEMA Type 4
Explosion protection:
Intrinsically safe
II 2G Ex ia IIC T4 Gb IP64
II 2D Ex ia IIIC T135°C Db IP6X
CE Mark
Hazardous area approval:
• ATEX (Zone 1) IIC T4
• ATEX (Zone 21) IIIC IP 64
• IECEx (Zone 1) IIC T4
• IECEx (Zone 21) IIIC IP 64
• NEC Class I, Division 1, A–D T4
• NEC Class II, Division 1, E–G T4
• NEC Class III, Division 1
Telecommunication approval:
FCC, CE
Electrical safety:
UL (DEMKO), cULus listed
