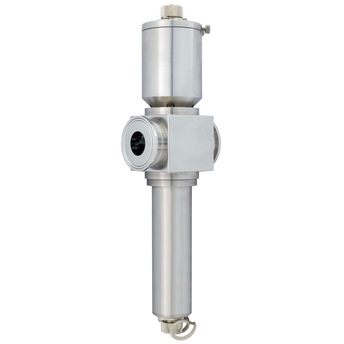

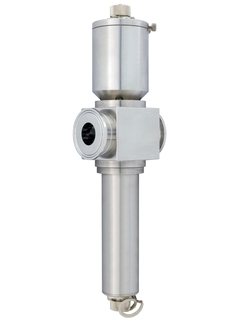

UV absorption sensor
OUSAF46
Sensor for inline product quantification at two specific UV wavelengths
The OUSAF46 UV sensor monitors the concentration of your product at two discrete wavelengths. It covers a broad concentration range and supports you e.g. in optimizing chromatography control. Its outstanding filter performance ensures highest linearity and full consistency with lab results. This provides you with fast and reliable process information and increases your product yield. You also benefit from Easycal – the patented system for easy, liquid-free online calibration traceable to NIST.
- F
- L
- E
- X
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
| FLEX selections | Technical excellence | Simplicity |
|---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
-
Specs at a glance
-
Measurement range
0 to 2.5 AU
0 to 50 OD (depending on optical pathlength) -
Process temperature
0 to 90 °C (32 to 194 °F) continuous
Max. 130 °C (266 °F) for 2 hours -
Process pressure
Max. 100 bar (1450 psi) absolute, depending on the material, pipe size and process connection of the flow assembly
-
Loading alternative products
Additional components
-
Benefits
Covers a wide measuring range thanks to the second UV wavelength
Fast and reliable monitoring of product concentration for better process control and simplified quality control
Precise measured values with full consistency to laboratory results
Patented...
-
Field of application
The OUSAF46 sensor measures the UV absorption at two specific wavelengths for:
Measurement of protein concentrations
Chromatography control
Permeate and retentate monitoring
Concentration measurement of organic compounds
Aromatics detection
Filter...
Documents / Manuals / Software
-
OUSAF46
Technical Information
Optical sensor with the OUA260 flow assembly for the measurement of UV
absorptionTechnical Information (TI) -
OUSAF46
Operating Instructions
Optical sensor with the OUA260 flow assembly for the measurement of UV
absorptionOperating Instruction (BA) -
OUSAF12, OUSAF21, OUSAF22, OUSAF44, OUSAF46, OUSTF10
Sicherheitshinweise für elektrische Betriebsmittel im
explosionsgefährdeten Bereich
Safety instructions for electrical apparatus for explosion-hazardous
areas
Conseils de sécurité pour matériels électriques destinés aux zones
explosibles
Safety Instructions
Safety instructions for electrical apparatus for explosion-hazardous
areasEx Safety Instructions (XA) -
Absorbance, Cell growth, TURBIDITY AND TOTAL SUSPENDED SOLIDS, UV
Product Code: OUSAF11-, OUSAF12-, OUSAF21-, OUSAF22-, OUSAF44-, OUSAF46-, OUSBT66-, OUSTF10-
Declaration Number: EC_00245_02.16EU DeclarationGerman , English , fr -
Absorbance, TURBIDITY AND TOTAL SUSPENDED SOLIDS, UV
Product Code: OUSAF12-, OUSAF21-, OUSAF22-, OUSAF44-, OUSAF46-, OUSTF10-
Declaration Number: EC_00310_04.16EU DeclarationGerman , English , fr -
Viomax, UV, Turbimax, TURBIDITY AND TOTAL SUSPENDED SOLIDS, TOCII, Stip-Scan, Stamolys, SPECTROMETER, OxyMax W, OxyMax H, New Analyzer Platform, Liquistation M, Liquiport, Isemax, Cell growth, Absorbance
Product Code: CAM74-, CAS40D-, CAS51D-, CAS74-, CAS80E-, CKF50-, CKI50-, COS22D-, COS31-, COS41-, COS51D-, COS61-, COS61D-, COS81D-, CSF48-, CSP44-, CUS50D-, CUS51D-, CUS52D-, CVF52-, CVI52-, OUSAF11-, OUSAF12-, OUSAF22-, OUSAF46-, OUSBT66-, OUSTF10-, CA70SI-, CA71AL-, CA71AM-, CA71CL-, CA71CR-, CA71CU-, CA71FE-, CA71HA-, CA71HY-, CA71MN-, CA71NO-, CA71PH-, CA71SI-, CA72TOC-, CA76NA-, CA80AL-, CA80AM-, CA80COD-, CA80CR-, CA80FE-, CA80HA-, CA80MN-, CA80NO-, CA80PH-, CA80SI-, CA80TN-, CA80TP-
Approval Number: EAEC RU D-DE.AD07.B.01362/19MiscellaneousRussian -
Viomax, UV, Turbimax, TURBIDITY AND TOTAL SUSPENDED SOLIDS, TOCII, Stip-Scan, Stamolys, SPECTROMETER, OxyMax W, OxyMax H, New Analyzer Platform, Liquistation M, Liquiport, Isemax, Cell growth, Absorbance
Product Code: CAS40D-, CAS51D-, CAS74-, CAS80E-, CKF50-, CKI50-, COS22D-, COS31-, COS41-, COS51D-, COS61-, COS61D-, COS81D-, CSF48-, CSP44-, CUS50D-, CUS51D-, CUS52D-, CVF52-, CVI52-, OUSAF11-, OUSAF12-, OUSAF21-, OUSAF22-, OUSAF46-, OUSBT66-, OUSTF10-, CAM74-, CA71AL-, CA71AM-, CA71CL-, CA71COD-, CA71CR-, CA71CU-, CA71FE-, CA71HA-, CA71HY-, CA71MN-, CA71NO-, CA71PH-, CA71SI-, CA72TOC-, CA76NA-, CA80AL-, CA80AM-, CA80COD-, CA80CR-, CA80FE-, CA80HA-, CA80MN-, CA80NO-, CA80PH-, CA80SI-, CA80TN-, CA80TP-
Region/Country: Russia (Declaration of Conformity)
Approval Number: EAEC D-DE.AD07.B.01363/19MiscellaneousRussian -
Absorbance, TURBIDITY AND TOTAL SUSPENDED SOLIDS, UV
Product Code: OUSAF12-, OUSAF21-, OUSAF22-, OUSAF44-, OUSAF46-, OUSTF10-
Region/Country: Europe (ATEX)Explosion ProtectionEnglish
Accessories / Spare parts
-
-
Order code
For further repair or spare part inquiries
-
Order code
please contact your local
-
Order code
E+H Sales- and serviceorganisation
-
Order code 71108535
KIT OUSAF4x Lamp 280/295/302/313/365nm
-
Order code 71108543
KIT OUSAF44 Reference Rod
-
Order code 71210161
KIT OUSxFxx Connector Dust Cover
-
Order code 71382018
KIT OUSAF46 Easycal Retrofit 254/280 nm
-
Order code 71382019
KIT OUSAF46 Easycal Retrofit 280/295 nm
-
Order code 71382020
KIT OUSAF46 Easycal Retrofit 280/313 nm
-
