This product is not available in this market.
*Please contact your Endress+Hauser sales partner for any further questions.
Specs at a glance
-
Accuracy
+/- 5mm (0.2")
-
Process temperature
-40…+60°C
(-40…+140°F) -
Process pressure / max. overpressure limit
-1…3 bar
(-14,5…43 psi) -
Max. measurement distance
10m (32.8 ft)
-
Main wetted parts
PVDF, PBT
Field of application

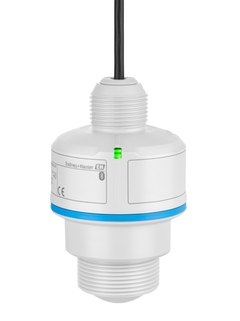

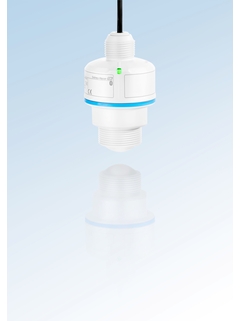

The Micropilot FMR10B supplies continuous non-contact level measurement with 80 GHz technology. It is the perfect match for basic applications in the Water & Wastewater industry as well as for Mining, Minerals & Metals and utilities across all industries. Guiding wizards guarantee simplicity in installation and commissioning. It is also ideal for limited space applications thanks to its compact design.
The Micropilot FMR10B is a free space radar device with a measuring range of up to 10m (33ft) for basic applications in liquids and solids. It is suitable for the level measurement in a wide range of applications:
Open basins
River monitoring
Storage tanks
Silos
Stockpiles
Benefits
Fast and easy commissioning thanks to guided setup sequences (wizards)
Bluetooth connectivity enables easy, reliable and encrypted wireless remote access
Device identification during Bluetooth connection thanks to “It’s me-function” (LED flashing) and status indication via LED
Simple device selection thanks to clear segmentation and easy configuration
Videos
Fundamental selection
-
Simple products
- Easy to select, install and operate
Technical excellence
Simplicity
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
FLEX selections | Technical excellence | Simplicity |
---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
-
-
Technical Information (TI)
TI Micropilot FMR10B
Free-space radar
EN 25/09/2024Language:
English
Version:
25/09/2024
File size:
1.6 MB
File name:
TI01805FEN_0124-00.pdf
-
-
-
Operating Instruction (BA)
BA Micropilot FMR10B
Free-space radar
EN 25/09/2024Language:
English
Version:
25/09/2024
File size:
1.8 MB
File name:
BA02372FEN_0124-00.pdf
-
-
-
Short Instruction (KA)
KA Micropilot FMR10B
Free-space radar
EN 25/09/2024Language:
English
Version:
25/09/2024
File size:
381.5 KB
File name:
KA01722FEN_0124-00.pdf
-
-
-
Special Documentation (SD)
SD Micropilot FMR10B, FMR20B, FMR30B
Free-space radar
EN 17/09/2024Language:
English
Version:
17/09/2024
File size:
246.7 KB
File name:
SD03324FEN_0124-00.pdf
-
-
-
Innovation (IN)
Je einfacher, desto besser.
Die Messgeräte für einen sorgenfreien Einsatz.
Language:
German
Version:
26/09/2024
File size:
5.9 MB
File name:
Micropilot-FMR10B-FMR20B-FMR30B_IN01344F00DE_eBrochure_long-version.pdf
-
-
-
Innovation (IN)
Je einfacher, desto besser.
Die Messgeräte für einen sorgenfreien Einsatz.
Short version.Language:
German
Version:
26/09/2024
File size:
1.8 MB
File name:
Micropilot-FMR10B-FMR20B-FMR30B_IN01345F00DE_eBrochure_short-version.pdf
-
-
-
Innovation (IN)
The simpler, the better. The measuring devices for anyone who wants more of worrying less.
The simpler, the better.
The measuring devices for anyone who wants more of worrying less.Language:
English
Version:
29/08/2024
File size:
13.4 MB
File name:
Micropilot-FMR10B-FMR20B-FMR30B_IN01344F00EN_eBrochure_long-version.pdf
-
-
-
Manufacturer Declaration
Product family: Micropilot
Product root: FMR10B-, FMR20B-, FMR30B-
Declaration number: HE_01997_01.24
Manufacturer specification: RoHS
Additional information: China RoHSEN 19/09/2024Language:
English
Version:
19/09/2024
File size:
262.3 KB
File name:
HE_01997_01.24.pdf
-
-
-
EU Declaration
Product family: Micropilot
Product root: FMR10B-, FMR20B-, FMR30B-
Declaration number: EU_01219_01.24Language:
English
Version:
24/09/2024
File size:
1 MB
File name:
EU_01219_01.24.pdf
-
-
-
UK Conformity Assessed
Product family: Micropilot
Product root: FMR10B-, FMR20B-, FMR30B-
Declaration number: UK_00598_01.24Language:
English
Version:
24/09/2024
File size:
262.4 KB
File name:
UK_00598_01.24.pdf
-
