Promag 53W

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

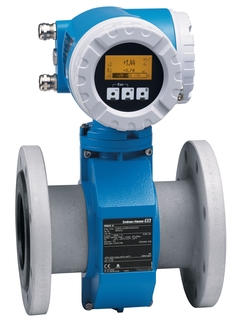

Electromagnetic flowmeter - Proline Promag 53W

Predecessor

Successor

F

L

E

X
Proline Promag W 400 / 5W4C

Versatile standard flowmeter for the water and wastewater industry
Read more

Loading price

Prices temporarily unavailable

Price after login

Price on request

activating price

price: provide information

from CHF ??.-

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Measuring principle

Electromagnetic
Product headline

std_productprofile_product_usp_34667_1508941375.
The specialist in the water and wastewater industry for the most demanding applications.
Sensor features

Secure, reliable long‐term operation – robust and completely welded sensor. Energy‐saving flow measurement – no pressure loss due to cross section constriction. Maintenance‐free – no moving parts.
International drinking water approvals. Degree of protection IP68 (Type 6P enclosure).
Transmitter features

std_productprofile_product_benefits_34656_1508940491. std_productprofile_product_benefits_34658_1508940614. std_productprofile_product_benefits_34657_1508940613.
std_successorproducts_product_differentiating_tech_features_35324_1509527963. std_successorproducts_product_differentiating_tech_features_35325_1509527962. std_successorproducts_product_differentiating_tech_features_35326_1509527956.
Nominal diameter range

DN 25...2000
1"...78"
Max. measurement error

±0.2%
Measuring range

0...110'000 m3/h
Max. process pressure

PN6...40
Cl 150...300
JIS 10...20K
AWWA Class D
AS 2129 Table E
AS 4087 PN16
Medium temperature range

-20...+80°C
(-4...+176°F)
Ambient temperature range

-20...+60°C
-40...+60°C (optional)
Degree of protection

IP 67 (NEMA 4x)
IP 68 (Nema 6P)
Display/Operation

Four line display with backlit
Touch control
Outputs

4...20 mA
Pulse/Frequency (active/passive)
Relays
Status
Inputs

Status
Current input
Digital communication

HART
PROFIBUS PA
Profibus DP
FOUNDATION Fieldbus
Hazardous area approvals

ATEX, FM, CSA
Product safety

CE, C-tick, EAC marking

	EN
01/10/2017
21/07/2010
18/02/2010

Language:	English
Version:	01/10/2017
File size:	2.7 MB
File name:	TI00046DEN_1317.pdf

	EN
27/11/2017
01/02/2015
01/04/2014
28/06/2010
23/12/2009

Language:	English
Version:	27/11/2017
File size:	11.3 MB
File name:	BA00053DEN_1517.pdf

Language:	English
Version:	01/10/2005
File size:	1.1 MB
File name:	BA118DEN.pdf

	EN
01/10/2005

	EN
01/12/2014
18/12/2009
01/03/2005
15/10/2003
01/06/2001

	EN
05/05/2010
01/03/2002

	EN
28/06/2010
01/10/2005
01/04/2001

Promag 53W

Predecessor

Successor

Proline Promag W 400 / 5W4C

Measuring principle

Product headline

Sensor features

Transmitter features

Nominal diameter range

Max. measurement error

Measuring range

Max. process pressure

Medium temperature range

Ambient temperature range

Degree of protection

Display/Operation

Outputs

Inputs

Digital communication

Hazardous area approvals

Product safety

Back

Proline Promag 50W, 53W Technical Information

Proline Promag 53 PROFIBUS DP/PA Operating Instructions

Proline Promag 53 MODBUS RS485 Description of Device Functions

Proline Promag 53 FOUNDATION Fieldbus Operating Instructions

Proline Promag 53 HART Operating Instructions

Proline Promag 53 HART Desription of Device Functions

Proline Promag 53 Modbus RS485 Operating Instructions

Proline Promag 53 FOUNDATION Fieldbus Description of Device Functions

Proline Promag 53 PROFIBUS DP/PA Description of Device Functions

Proline Promag 53 Brief Operating Instructions

Back

Kit P.s.b. 50/51/53 85-260VAC

Kit p.s.b. 50/53 85-260VAC HE

Kit p.s.b. 50/53 85-260VAC HE

Kit P.s.b. 50/51/53 85-260VAC Ex

Kit p.s.b. 50/53 85-260VAC HE Ex

Kit P.s.b. 50/51/53 20-55VAC 16-62VDC

Kit p.s.b.50/53 20-55VAC 16-62VDC HE

Kit P.s.b. 50/51/53 20-55VAC16-62VDC Ex

Kit p.s.b.50/53 20-55VAC 16-62VDC HE Ex

Kit 10 fuses 250 VAC T800 MA

Kit 10 fuses 250 VAC T 2A00

Kit meas. amplifier PMAG 53 WEA EX

Kit meas. amplifier 53 WEA HE Ex

Kit meas. amplifier PMAG 53 WEA

Kit meas. amplifier 53 WEA HE

Kit meas. amplifier PMAG 53 SEA EX

Kit meas. amplifier 53 SEA HE Ex

Kit meas. amplifier PMAG 53 SEA

Kit meas. amplifier 53 SEA HE

Kit meas. amplifier PMAG 53 EES EX

Kit meas. amplifier 53 EES HE Ex

Kit meas. amplifier PMAG 53 EES

Kit meas. amplifier 53 EES HE

Kit meas. amplifier Pmag 53 CN EX

Kit meas. amplifier 53 CN HE Ex

Kit meas. amplifier Pmag 53 CN

Kit meas. amplifier 53 CN HE

Kit amp. 53, HART7, DE+FR+IT+ES+EN, EX

Kit amp. 53,HART7, DE+FR+IT+ES+EN, HE,EX

Kit amp. 53, HART7, DE+FR+IT+ES+EN

Kit amp. 53, HART7, DE+FR+IT+ES+EN, HE

Kit amp. 53, HART7, RU+NL+PT+CS+EN, EX

Kit amp. 53,HART7, RU+NL+PT+CS+EN, HE,EX

Kit amp. 53, HART7, RU+NL+PT+CS+EN

Kit amp. 53, HART7, RU+NL+PT+CS+EN, HE

Kit amp. 53, HART7, ZH+PL+ID+EN, EX

Kit amp. 53, HART7, ZH+PL+ID+EN, HE, EX

Kit amp. 53, HART7, ZH+PL+ID+EN

Kit amp. 53, HART7, ZH+PL+ID+EN, HE

Kit amp. 53, HART7, JA+SV+NO+FI+EN

Kit amp. 53, HART7, JA+SV+NO+FI+EN, HE

Kit commodul Iout passive/Frequency Exi

Kit I/O Iout passive/Frequency HE Exi

Kit commodul Iout active/Frequency Exi

Kit I/O Iout active/Frequency HE Exi

Kit commodul current/freq./2Relay Ex

Kit I/O current/frequency/2Relay HE EX
