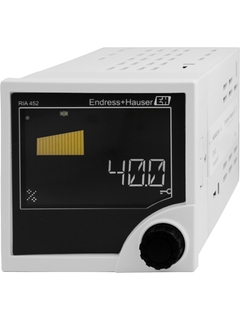

Product picture process meter RIA452

RIA452
Process indicator with pump control

Digital process meter in panel mounted housing for monitoring and displaying analog measured values

RIA452
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-
RIA452 Process indicator with pump control
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Input

    1 x analog (U, I, RTD, TC, R)

  • Output

    1 x analog (U, I)
    1 x transmitter power supply

  • Output

    1 x analog (U, I)
    1 x transmitter power supply

  • Display

    LCD multicolour
    Illuminated
    Bargraph

  • Power Supply

    90...250 V AC
    20...28 V AC
    20...36 V DC

Field of application

The process meter monitors and displays the analog measured values. Pumps can be monitored with the digital status inputs. The RIA452 can provide power directly to two-wire sensors connected. Up to eight freely programmable relays monitor the measured value. Other operating modes for the relays include sensor or device malfunction, batch and pump control functions. Furthermore, the RIA452 can be used as a preset counter and for measuring flow at open channels and measuring weirs.

The single-channel panel meter RIA452 monitors and displays analog measured values. Pumps can be monitored with the digital status inputs.

The RIA452 can provide power directly to two-wire transmitters connected, intrinsically safe as an option. Up to eight freely programmable relays monitor the measured value for limit value overshoot and undershoot. Other operating modes for the relays include sensor or device malfunction, batch and pump control functions (e.g. alternating pump control).

Benefits

  • 7-digit 14-segment LC display, large bar graph with overrange and underrange

  • Digital status inputs for pump monitoring

  • Flow measurement for open channels and weirs

  • Intrinsically safe input with integrated loop power supply

  • Min/Max value saved

  • Linearization table with up to 32 support points
