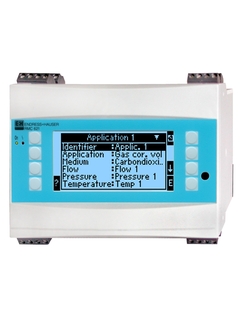

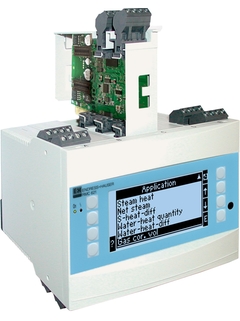

Product picture energy manager RMC621

RMC621
Flow and energy manager

Universal flow and energy computer for gases, liquids and steam

RMC621
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-
Filter Measuring / Application task
Filter Measuring / Application task
Measuring / Application task

Configure to download the CAD drawings of this product

Close Show results

  • Measuring principle

    Energy manager

  • Measuring principle

    Flow and energy manager

  • Function

    Gas, liquids, steam and water bilancing for industrial energy management

  • Calculations

    mass/heat quantity
    heat quantity difference
    for gases: standard volume, heating value, mass

  • Number of applications

    3

  • Data storage

    no

  • Calculation standards

    IAPWS IF97
    AGA8 / SGERG88
    Nx/9
    API 2540
    customer spezific tables
    ISO 5167

  • Communication

    1 x RS232
    2 x RS485
    PROFIBUS DP
    M-Bus
    Modbus RTU

  • Power supply

    Not defined

  • Loop power supply

    90...250V AC 50/60 Hz
    20...28V AC 50/60 Hz
    20...36V DC

  • Protection class

    IP20

  • Input

    2...8x PFM
    2...8x I
    2...8x Impulse (aktiv)
    2...6x RTD
    2...8x Impulse (passiv)

  • Output

    3...9x transmitter power supply

  • Dimensions (WxHxD)

    135 x 108 x 114 mm (5.32" x 4.25" x 4.49")

  • Operation

    Soft keys RS232 and operation software ReadWin 2000

  • Display

    LC-Dot-Matrix 160 x 80 Punkte

  • Software functions

    International calculation standards for gas, liquids, steam and water

  • Certificates

    ATEX Ex ia
