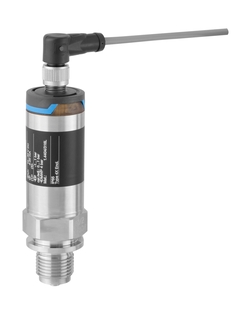

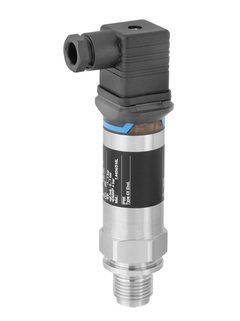

Cerabar PMP11

Gauge pressure
Cerabar PMP11

Cost-effective pressure transducer with metal sensor for measurement in gases or liquids

PMP11
Loading price
Prices temporarily unavailable
Price on request
from CHF ??.-
Cerabar PMP11
  • F
  • L
  • E
  • X
©Endress+Hauser
Cerabar PMP11
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Accuracy

    0.5%

  • Process temperature

    -25…+85°C
    (-13…+185°F)

  • Pressure measuring range

    400 mbar...+40 bar
    (6 psi...+600 psi)

  • Measuring cell

    400 mbar...+40 bar
    (6 psi...+600 psi)

Field of application

The Cerabar PMP11 is the most price-attractive compact pressure transmitter in its segment. It features a piezo-resistive sensor and is able to measure gauge pressure from 400mbar up to 40bar. The PMP11 is designed to withstand the conditions in the process industry with the use of high quality materials like 316L. It can be used for standard applications in the process industry.

Pressure transducer with fully welded metal sensor to measure gauge pressure in gases or liquids.

  • Process connections: Threads

  • Process temperature: -25 to +85°C (-13 to +185°F)

  • Process pressure: 400mbar to +40bar (6 to 600psi)

  • Accuracy: ±0.5% of span

Benefits

  • Easy and time-saving installation and set up within the plant due to very compact construction and customizable measuring ranges

  • Reference accuracy of 0.5% together with high long- term stability and repeatability ensures a high quality of process monitoring in standard processes

  • Long process availability is underpinned by the stringent use of 316L material and the 100% test coverage during production
